System Capacity
2
Master Stations
60
Sub Stations
TC-M Series
Series
The TC-M Series is an internal telephone type system which supports up to 2 master stations and 60 sub stations.
Learn more about the TC-M Series in the Technical Knowledgebase! https://www.aiphone.com/kbtopic/tc-m-series
System Capacity
2
Master Stations
60
Sub Stations
Jump to:
Features

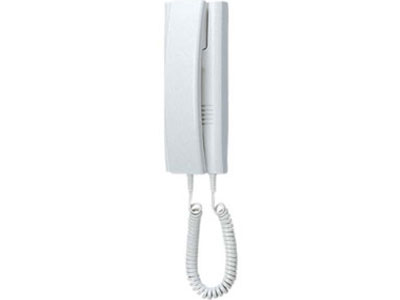

- Calling and communication from up to 60 handset sub stations to master station
- TC-20G or TC-40G add-on selector connects additional TB-SE sub stations, allowing system expansion
- One or dual master configuration
Specs
Power Source
18V DC, 350mA max. or
15V AC, 50/60Hz, 750mA max.
Communication
Handset (full-duplex)
Wire Type

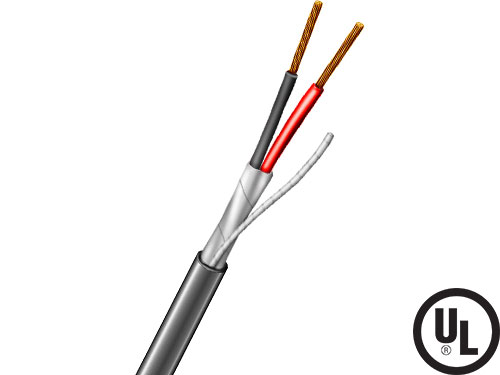

TC-M to TB-SE: 2-cond., overall shield – use Aiphone #822202
TC-M to TB-AD1: 5-cond.
TC-M to TB-AD10: 14 cond. max.
Distance
TC-M to TB-SE: 1,300'(22AWG), 2,950(18AWG)
TC-M to TB-AD1(10): 210'(22AWG), 495'(18AWG)
Components
Literature
