Nurse Call (NHX) Series
Nurse Call

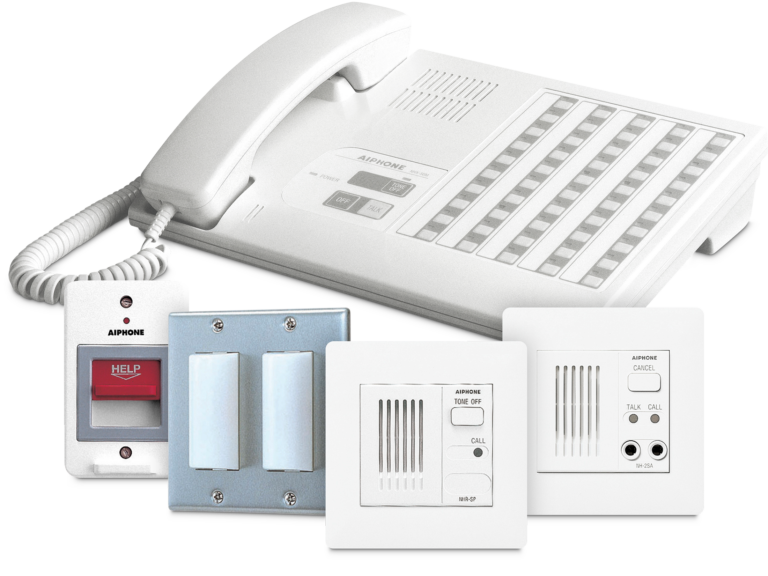

The NHX Series is a UL 1069 Listed nurse call intercom. The system provides staff alert and communications for a variety of health care applications: nursing homes, assisted-living facilities, clinics, wards, and hospitals.
Learn more about the NHX Series in the Technical Knowledgebase! https://www.aiphone.com/kbtopic/nhx-series
- 1 master, 1 duty station, and up to 80 sub stations
- Single and dual jack bedside sub stations
- Multi-station capability per patient room
- Three types of call-ins from sub stations: routine call, bathroom call, and cord-out trouble call
- Tone and blinking LEDs indicate priority according to urgency and time of call
- NHR-3TS sub station is ideal for common areas
- Duty station for call annunciation in separate area
Power Source
24V DC – use two PS-2420ULs
Communication
Handset (VOX) or push-to-talk (simplex)
Wire Type
Sub/Duty Station to Central Control Unit: 4 twisted pair, low cap, PE, overall shield – use Aiphone #862208
Master Station to Central Control Unit: 5 twisted pair, low cap, PE, overall shield – use Aiphone #862210
Distance
Sub Station to Central Control Unit: 165'(22AWG)
Duty Station to Central Control Unit: 65'(22AWG)
Master Station to Central Control Unit: 65'(22AWG)
