NHX-50M

Components

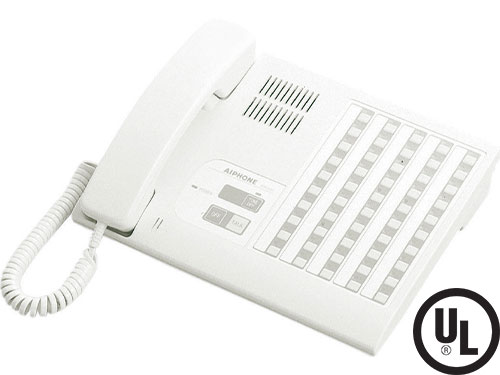

50-Call Audio Master Station with Handset

Features 3 call levels with distinct tone and light signaling for routine, urgent, and cord-out trouble calls.

Features
  • Routine call and bathroom call annunciated by slow or fast flashing LED and tone
  • Auto-connect to next call-in priority (no need to select station)
  • Fault tone sounds when wires are disconnected or shorted at patient station, or handset is off-hook for more than 90 seconds

Specs

Communication

Handset (VOX) or push-to-talk (simplex)

Call-In Priority

1) Cord-out trouble call
2) Urgent bathroom call and NHR-3TS common area bathroom/staff call
3) Routine call (sub station call-ins on standby connected according to urgency level and time of call)

Warning Tones

1) Line-off trouble at bedside or NHR-3TS and duty station - to stop tone on duty station, plug in 2-pin jumper to CN104 in Central Control Unit
2) 90 sec. elapse timer - call tone goes up to HIGH level
3) 90 sec. off-hook timer - steady tone will notify handset is off-hook

Wire Type

Master Station to Central Control Unit: 5 twisted pair, low cap, PE, overall shield - use Aiphone #862210

Distance

Master Station to Central Control Unit: 65'(22AWG)
