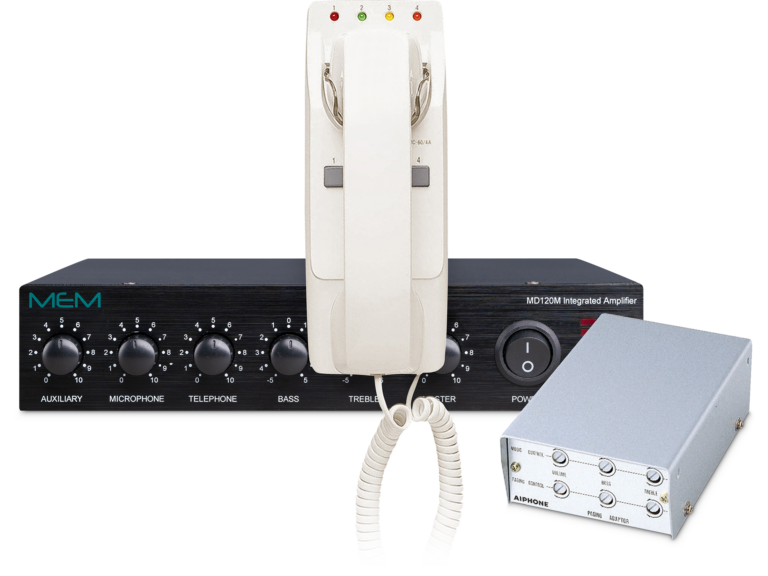

MarketCom (MC) Series

Series

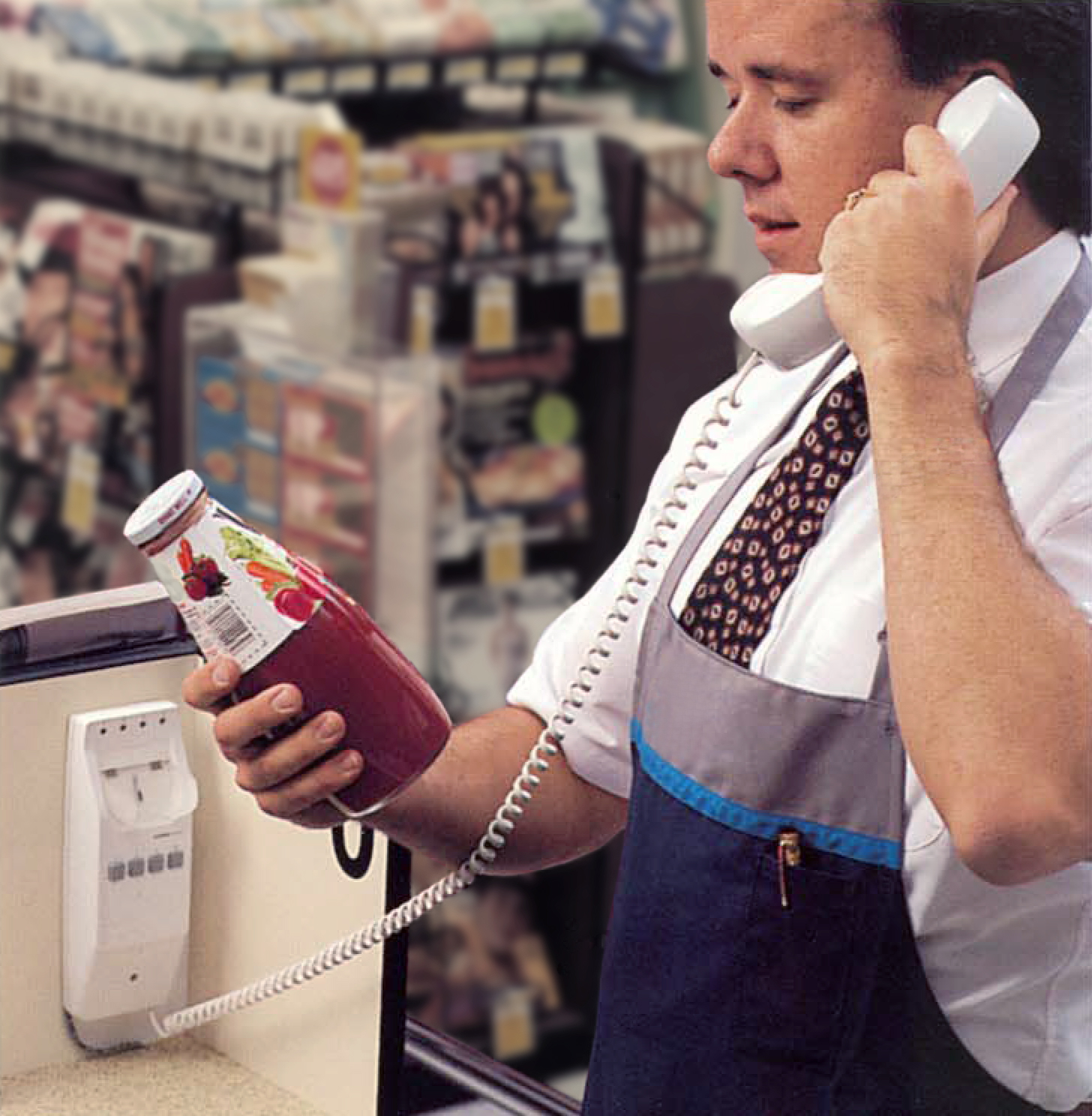

The MarketCom (MC) Series is a handset style paging and communication system for use in marketplace applications. Each station has a 4 line capacity with a separate paging channel.

Freakishly Reliable

Aiphone is proud to be a rare, two-time winner of the prestigious Deming Prize for quality management and manufacturing processes. Our ISO Certified process and rigorous standards result in some of the most reliable products in the industry. Aiphone products routinely last for years, only being replaced when the application outgrows the system capacity.

System Capacity
1
Paging Zone
60
Masters
Features
Paging
  • Maximum 60 station paging and communication system
  • 4 talk channels with in-use LED’s
  • Conference call among 3 stations
  • Reinforced modular coil cord on MC-60/4A

Specs

Power Source

24V DC - use PS-2420UL

Communication

Handset (full-duplex)

Wire Type

7 wires in loop, non-twisted, low capacitance, PE insulation - use Aiphone #852207

Distance

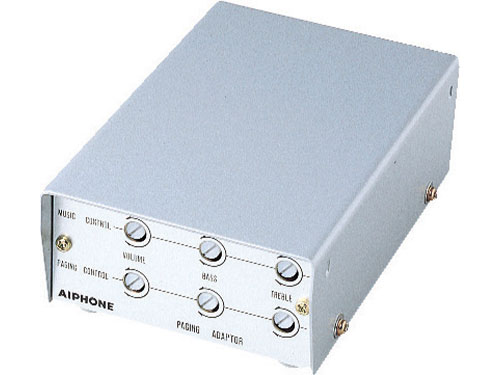

Paging Adaptor to farthest Master Station on block: 1,700'(22AWG) 4,000'(18AWG)
Total cumulative wiring between Paging Adaptor and Master Station: 5,000'(22AWG)
