LEM-1DL Series
Access Sentry
The Access Sentry Series is an audio communication and entry security system. Start with the LEM-1DLS box set, which is complete with a single door station, master station, and power supply. Install up to 3 additional master stations – each allows for communication with the door station and door release control. Integrate with the AC Series for a more comprehensive access and entry control security solution.
Learn more about the LEM-1DL Series in the Technical Knowledgebase! https://www.aiphone.com/kbtopic/lem-series
- Calling and 2-way communication with door station
- Door release
- Call tone and voice volume control
- 12~16V AC or 12~24V DC

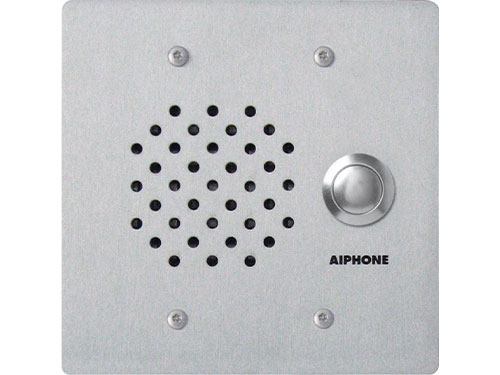

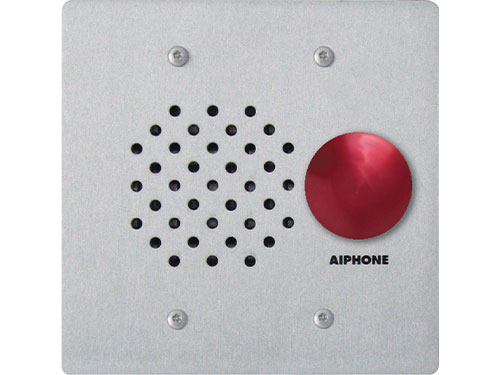

- Any LE or LS Series door station is compatibility
Power Source
12~16V AC – use PT-1210N or
12~24V DC – use PS-1225UL
Communication
Push-to-talk (simplex)
Door Release
N/O dry contact, 30V AC/DC, 1A (use RY-18L for larger contact rating)
Wire Type
Door Station to Master Station: 2-cond., overall shield – use Aiphone #822202 or #821802
Between LEM-1DLCs: 3-cond., overall shield – use Aiphone #822203 or #821803
Distance
Door Station to farthest Master Station: 650'(22AWG), 1,570'(18AWG)
