Handset Video Intercom

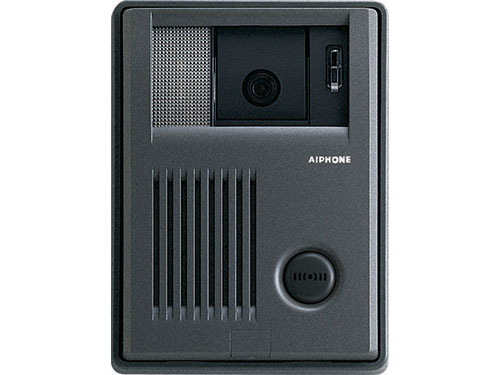

See and speak with visitors to determine their intent before conveniently unlocking the door with the push of a button! Control the door station's unique tilt video intercom camera from any of the interior video intercom units. Integrate the KB system with the AC Series, our new access control system, for the next level in entry control.

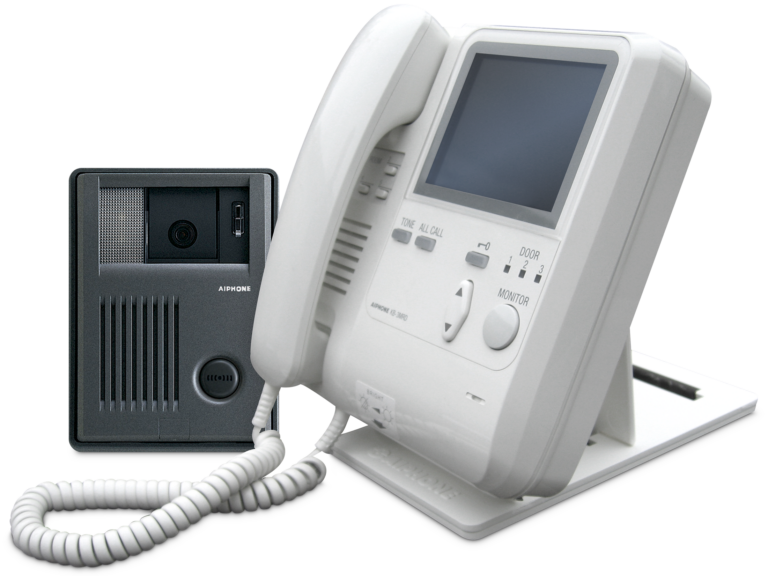

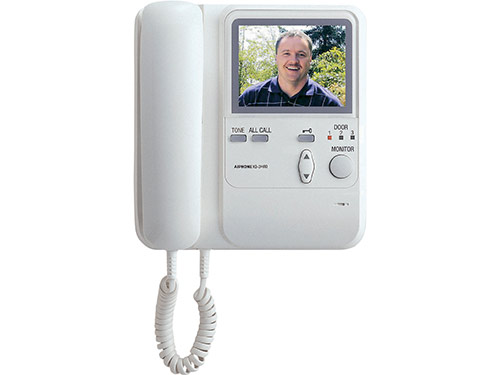

The KB Series master station allows audio and video monitoring and discreet screening of activity in areas where video door stations are installed. The Video Out to DVR option via the supplied connector makes saving recordings, possible. Inside video intercom units selectively call one master or sub master station at a time or call all the stations at once. Additionally, Selective Door Release is possible by including the RY-3DL.

Freakishly Reliable

Aiphone is proud to be a rare, two-time winner of the prestigious Deming Prize for quality management and manufacturing processes. Our ISO Certified process and rigorous standards result in some of the most reliable products in the industry. Aiphone products routinely last for years, only being replaced when the application outgrows the system capacity.

System Highlights
System Capacity
3
Door Stations
5
Mtr/Sub Stations
QuikSpec Plus
QuikSpec has moved to the AiphoneCloud
Login or Create your account.
Features
Selective Door Release
  • Tilt controlled camera provides larger viewing range
  • Selective Call or All Call between master stations
  • Instant voice call-in with image
  • Chime or receiver volume control
  • Selective door release with RY3-DL
  • Video out to DVR via supplied connector
  • 330′ total distance looped between monitors

Specs

Power Source

24V DC – use PS-2420UL

Communication

Handset (full-duplex)

Door Release

N/O dry contact, 12V AC, 400mA - use RY-24L for larger contact rating or RY-3DL for 2 or 3 doors

Wire Type

2-cond., mid cap, solid, non-shielded – use Aiphone #871802

Distance

Master Station to Door Station: 330'(22AWG), 650'(18AWG)
Master Station to farthest Sub Master Station: 165'(22AWG), 330'(18AWG)
Power Supply to Master Station: 16'(22AWG), 33'(18AWG)
Power Supply to Sub Master Station: 16'(22AWG), 33'(18AWG)
