KAW-D

Components

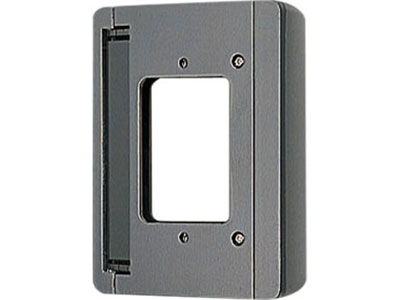

30-Degree Angle Box

For 1-Gang Surface Mount Door Stations applications where the camera must by mounted to either the right or left of a wide doorway. Used specifically for the IF-DA, JO-DA, JP-DA, KB-DAR or KB-DAR-M.

System Highlights
CSI Spec
CAD Drawing
Features
  • Provides a better viewing angle for the camera
  • Compatible with Aiphone 1-gang surface mount door stations
  • Angles 1-gang door stations outward by 30°
  • Can mount to either right or left of door
  • Hinged cover for mounting door station

Specs

Mounting

Surface mount directly to wall or 1-gang box
