JV Series Video Intercom
This simple compact video intercom set has an attractive design that complements most interiors.

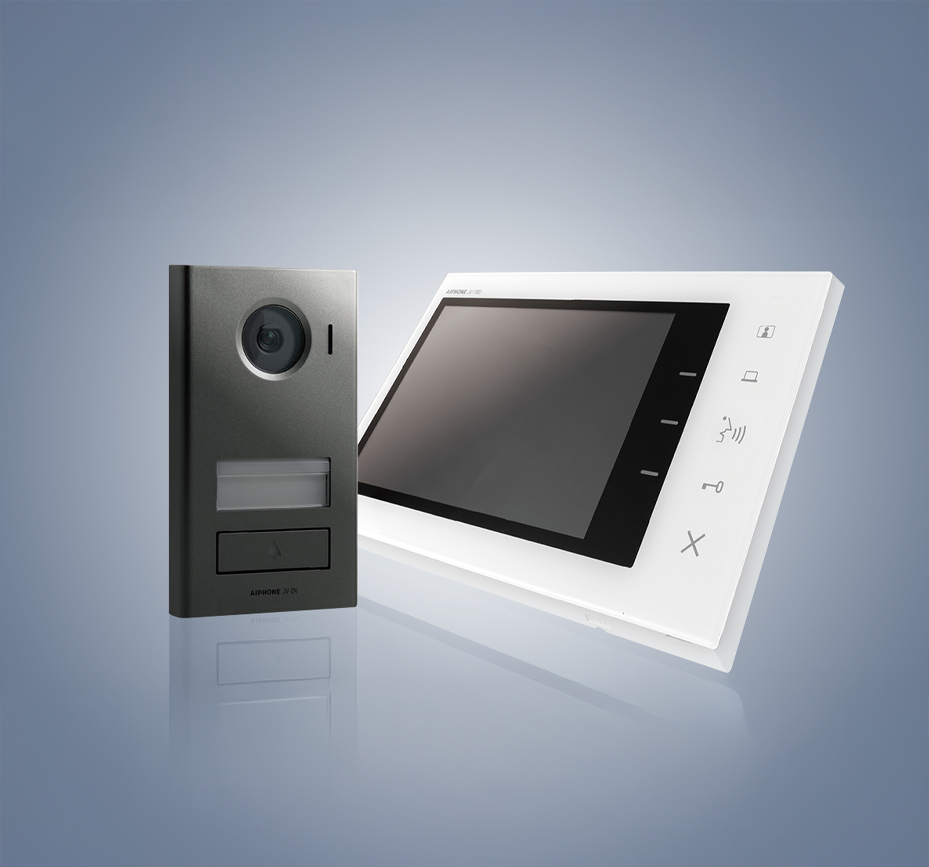

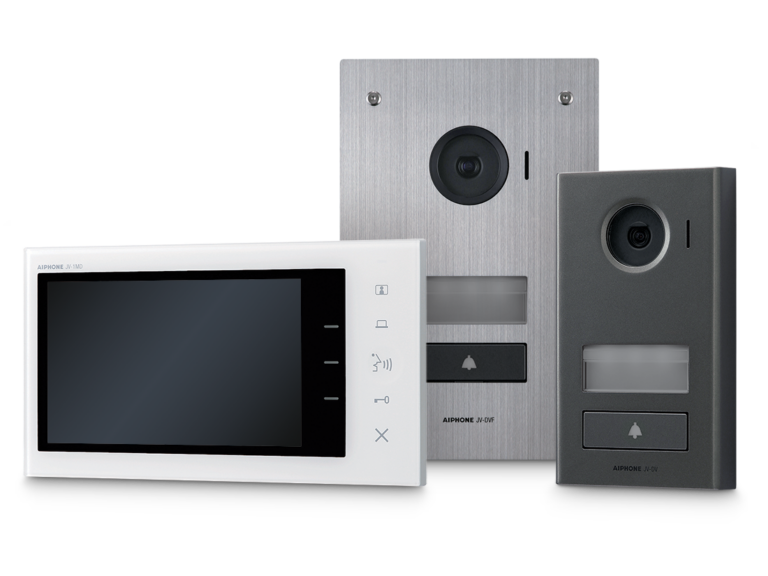

Available in two convenient 1x1 box sets, which include a master station, door station, and power supply. Simply select the set with your preferred door station and add an optional expansion station for a complete 1x2 system.
- Video monitoring
- One output to control a secondary device like a light or gate
- Simple daisy chain wiring
Power Source
24V DC - Use PS-2420UL
Communication
Hands-free (VOX) or push-to-talk (simplex)
Door Release
Master/Expansion Station and Door Station Output: N/O dry contact, 24v AC/DC, 1A
Second Door Station Output: N/O wet contact, 500 mA or less, 12V DC
Door Station Input: request to exit, N/O dry contact
Wire Type
Door Station to Master Station: 2-cond, mid cap, solid, non-shielded—use Aiphone #871802
Door Station to Expansion Station: 2-cond., mid cap, solid, non-shielded—use Aiphone #8710802
Expansion Station to Master Station: 4-cond, mid cap, solid, non-shielded—use Aiphone #871804
Expansion Station to Master Station (with door release): 6-cond., mid cap, solid, non-shielded—use Aiphone #871804 + #871802
Distance
Door Station to Master Station: 165' (22AWG) 330' (18 AWG) Door Station to Expansion Station: 165' (22 AWG) 330' (18 AWG) Expansion Station to Master Station: 165' (22 AWG) 330' (18 AWG) Power Supply to Master Station: 16' (22 AWG) 33' (18 AWG)
