JP-DV

Components

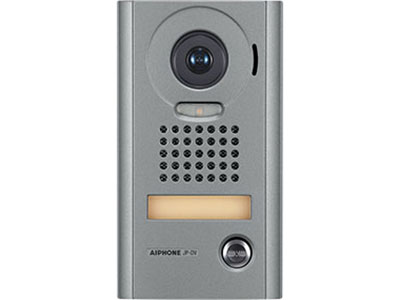

Surface Mount Video Door Station

The JP-DV is a surface mount, vandal and weather-resistant analog video intercom, featuring an aluminum die-cast front cover.

System Highlights
Features
  • Wide angle camera allows user to view up to 170° of the entry area
  • Digital Pan, Tilt and Zoom control from Master Station
  • LED illumination automatically turns on in low light conditions
  • Simple 2-conductor wiring

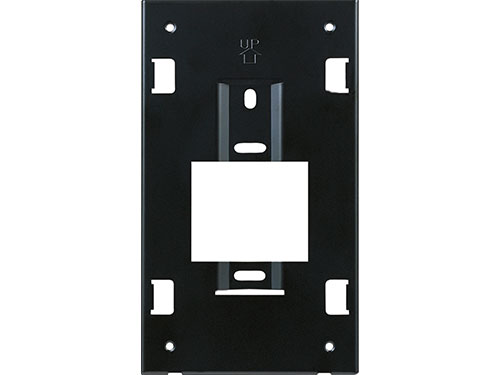

  • Mounts directly to wall or 1-gang box with MKW-P mounting plate
  • Housed in aluminum diecast
  • Weather resistant

Specs

Type of communication

Open voice hands-free auto-voice actuation

Camera

Type: 1/4" CMOS
Viewing Angle: Wide (approx. 100° x 170°) with Digital Pan, Tilt, and Zoom

Mounting

Mounts directly to wall or 1-gang box with MKW-P mounting plate

Wire Type

2-cond., low cap, non-shielded - use Aiphone #871802

Wire Distance

165' (22AWG), 300' (18AWG)

Temperature Rating

-4°~140°F (-20°~60°C)

Dimensions

6-13/16" H x 3-7/8" W x 1" D
