IXG-DM7-HIDA

Products

IXG-DM7-HIDA

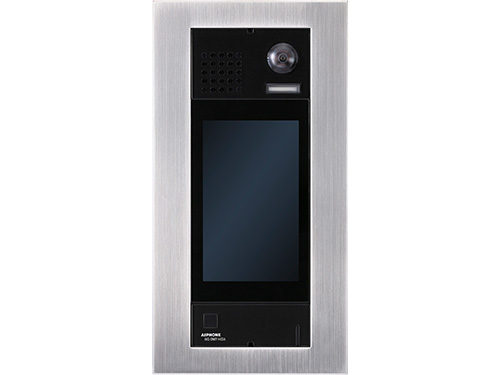

IP Video Entrance Station with built-in HID^® card reader

The IXG-DM7-HIDA is an IP video entrance station for the IX | IXG Series. It is equipped with a 720p HD camera, displays on a 7" LCD directory screen, includes motion sensor and T-coil. The screen activates when a visitor approaches. They can then place a call and be seen on the tenant station or mobile app.

The station includes a built-in HID card reader for card access. It supports Prox or iCLASS^® 26-bit and 37-bit cards, Aiphone 40-bit cards, and Corporate 1000^® 35-bit and 48-bit cards. The station can also act as an independent access control panel for the built-in HID reader.

System Highlights

IXG-DM7-HIDA Specification

IXG Quick Start Guide

IXG Support Tool

IXG Series Network Security Summary

IXG-DM7-HIDA Firmware

IX | IXG Series Home Page

Features

Simple user interface
1.23 megapixel fixed video camera
Built-in HID reader for card access
Hands-free audio communication
On-board recording with microSD™ card
Rugged IP65 and IK08 ratings
Stainless steel panel, with tamper sensor

Specs

Power Source	Power Source PoE (IEEE 802.3af class 0)
Power Draw	Power Draw 4.2W standby, 12.7W max
Screen	Screen 7" TFT display
Monitor Resolution	Monitor Resolution 800 x 400
Communication	Communication Full-duplex
Audio Codec	Audio Codec G.711 (μ-law, A law)
Video Codec	Video Codec H.264
Port Security	Port Security IEEE 802.1X
Operation Temp	Operation Temp -22°~140°F (-30°~60°C)
Dimensions	Dimensions 13-11/16" H x 7-3/16" W x 2" D
Card Types	Card Types High Frequency (13.56MHz): HID iClass, SEOS, HID iClass SR, HID iClass SE Low Frequency (125kHz): HID Proximity, Indala Proximity
Card Format	Card Format H10301 (26-bit Weigand), H10302/H10304 (37-bit Wiegand), Aiphone 40-bit, 35-bit/48-bit Corporate 1000
