System Highlights

IX-SSA-RA-FR

Components

IP Emergency Station

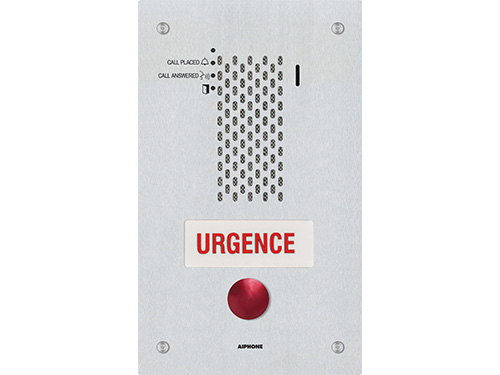

The IX-SSA-RA-FR is a flush mountable, vandal and weather resistant, stainless-steel IP Audio Intercom featuring an ADA compliant emergency call button (French). Compliant with SIP and compatible with all IX | IXG devices.

System Highlights
Features
SIP
Peer-to-peer
Emergency
  • SIP compliant
  • PoE with PoE pass through
  • ADA compliant raised lettering and Braille signage (French)
  • Illuminated call button indicator
  • Slot for micro SD card (not provided by Aiphone)
  • IP65 rated, weather resistant (IP65)
  • 2 contact outputs
  • 6 trigger inputs

Specs

Power Source

PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL) PoE pass through (802.3at Type 2 PoE+)

Power Draw

3.36 Watts @ 48V DC

Audio Codec

G.711 (μ-law, A law), G.722

Volume

73dB-96dB

Port Security

IEEE 802.1X

Operating Temp

-40° - 140°F (-40° - 60°C)

Ingress Protection

IP65

Impact Protection

IK08

Dimensions

11-11⁄16" H x 7" W

Mounting

Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
