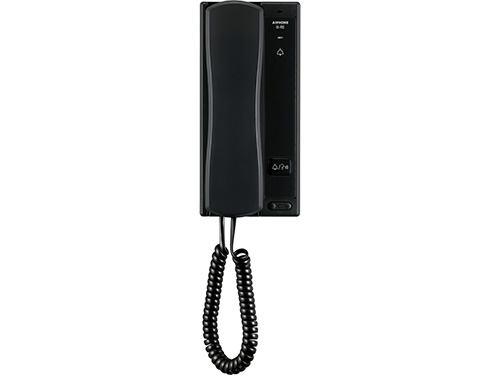

IX-RS-B
Components
IP Audio Answering Station
The IX-RS-B is a surface-mount IP answering station and can answer calls from Entrance Stations, Door Stations, and other Answering Stations. It is SIP compliant and is compatible with all IX | IXG series devices.
System Highlights
Jump to:
Features
SIP
Peer-to-peer
Emergency
- Handset and hands-free communication
- SIP Compliant
- 8Ω, 2-watt audio output for secondary speaker connection
- 1 contact output
- 1 trigger input
- Receive calls from door stations with door release
- Make outgoing calls to predetermined stations
- UL certified
Specs
Power Source
PoE (IEEE 802.3af class 0)
Power Draw
4.32 Watts
Audio Codec
G.711 (μ-law, A law), G.722
Communication
Full-duplex Handset or Hands Free
Port Security
IEEE 802.1X
Operating Temp
32° - 104°F (0° - 40°C)
Dimensions
7-9⁄16" H x 3-9⁄16" W x 2-⅝" D
Mounting
Wall mounting bracket included.
