IX-MV7-B
Components
IP Video Answering Station

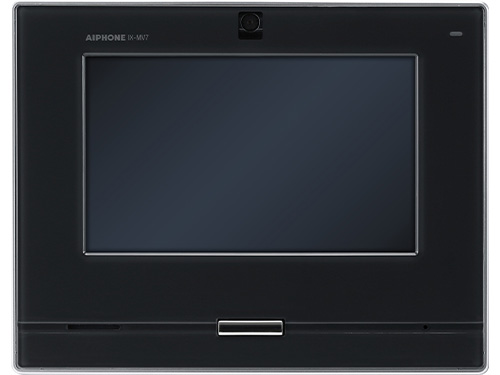

The IX-MV7-B is an IP video answering station with a 7" LCD touchscreen for the IX | IXG Series system. This station can answer calls from Entrance Stations, Door Stations, and other Answering Stations. It is SIP and ONVIF Profile S compliant and is compatible with all IX | IXG series devices.
System Highlights
Jump to:
Features
SIP
Peer-to-peer
Backwards Compatible
- SIP Compliant
- ONVIF® Profile S Compliant
- 7″ TFT LCD touchscreen
- Camera with privacy shutter
- Hands-free or push-to-talk communication
- 8 customizable speed dial buttons
- Capture and store the audio/video of active conversations on a microSD™ card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs
- 4 trigger inputs
- 8Ω 0.5 watt speaker output
- 600Ω audio input
- UL certified
Specs
Power Source
PoE (IEEE 802.3af class 0)
Power Draw
4.32 Watts
Screen
800x400 7" LCD TFT Touchscreen
Camera
⅓" CMOS 720p
Communication
Full-duplex Hands Free
Audio Codec
G.711 (μ-law, A law), G.722
Video Codec
H.264/AVC, Motion JPEG
Port Security
IEEE 802.1X
Operating Temp
32° - 104°F (0° - 40°C)
Dimensions
6-3⁄4" H x 8-11⁄16" W x 1-1⁄4" D
Mounting
Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.
