IX-EA
Components

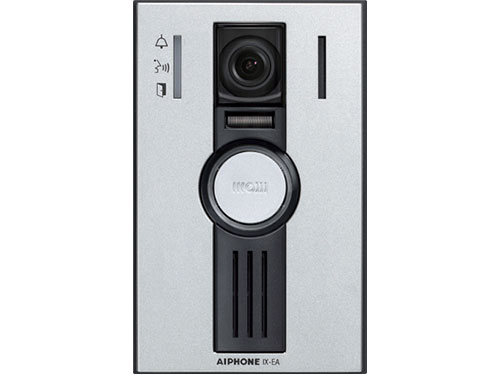

Surface Mount IP Video Door Station
The IX-EA is a one gang surface mount, IP Video Intercom. The IX-EA is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video through ONVIF and RTSP. The IX-EA is compatible with all IX | IXG series devices.
Jump to:
Features
Network Based
ONVIF® Profile S Compatibility
Weather Resistant
- SIP compliant
- 802.3af PoE compliant
- White LED for low light illumination
- ONVIF Profile S compliant
- Camera vertical adjustment +13º, 0º, or -8º (manual)
- Slot for microSD™ card (not provided by Aiphone)
- Weather resistant
- 1 contact output
- 1 trigger input
- 600Ω audio output
Specs
Power Source:
PoE (IEEE 802.3af class 0)
Power Draw:
5.18W max
Camera:
⅓" CMOS 1.23 megapixel
Min. illumination:
5 lux
Audio Codec:
G.711 (µ-law, A law), G.722
Video Codec:
H.264/AVC, Motion JPEG
Volume
73dB-96dB
Port Security:
IEEE 802.1X
Operating Temp:
14° ~ 140°F (-10° ~ 60°C)
Dimensions:
6-5⁄16" H x 3-15⁄16" W x 1-3⁄4" D
