IX-DVF-4A
Components

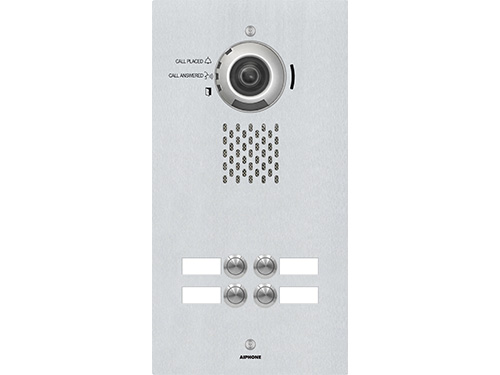

IP Video Door Station with 4 Call Buttons
The IX-DVF-4A is a flush mount, vandal-resistant, and weather-resistant IP Video Intercom, featuring a stainless-steel front cover and four programmable call buttons. The IX-DVF-4A is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF-4A is compatible with all IX | IXG series devices.
Jump to:
Features
SIP
Peer-to-peer
Vandal Resistant
- Four labeled call buttons (blank template included)
- SIP compliant
- White LED for low-light illumination
- ONVIF® Profile S compliant
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- Weather and vandal-resistant
- Two contact outputs, two trigger inputs
- Stainless steel
- 802.3af PoE
- PoE passthrough (requires 802.3at Type 2 PoE+)
Specs
Power Source:
PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL)
Power Draw:
5.28W
Camera:
1/3" CMOS 1.23 megapixel
Min. illumination:
5 lux
Audio Codec:
G.711 (µ-law, A law), G.722
Video Codec:
H.264/AVC, motion JPEG
Port Security
IEEE 802.1X
Volume
73dB-96dB
UL Listed:
UL 62368-1 cUL 62368-1
Operating Temp:
-40° ~ 140°F (-40° ~ 60°C)
Protection:
IP65, IK08
Dimensions:
13-11/16" H x 7-3/16" W
