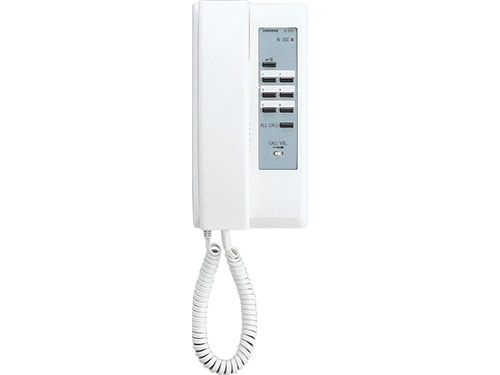

IE-8HD

Components

The IE-8HD is a sub-master handset used with the IE-8MD and is part of the IE-8 Series chime-tone intercom system.

Features
  • Selective Call or All Call between handsets
  • Simple 4 conductor wiring between handsets

Specs

Communication

Handset (full-duplex)

Door Release

N/O dry contact, 24V AC/ DC, 350mA

Wire Type

Door Station to Master Station: 2-cond., overall shield - use Aiphone #822202
Master Station to Sub Stations: 4-cond., overall shield - use Aiphone #822206

Distance

Door Station to Master Station: 500'(22AWG) 1,180'(18AWG)
Master Station to farthest Sub Master Station: 245'(22AWG) 580'(18AWG)
