System Capacity
1
Door Station
1
Master Station
IE-1AD Series
Series
Chime Tone Intercom

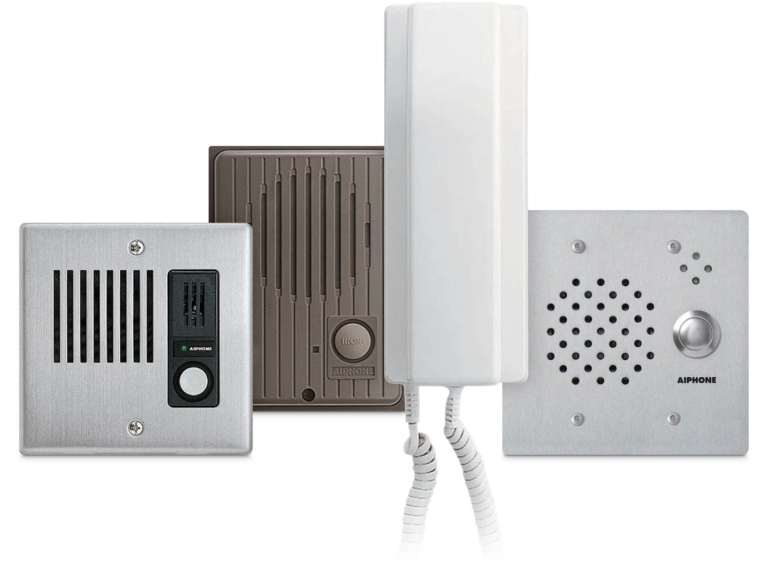

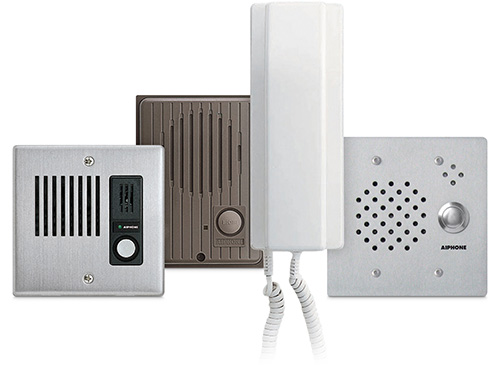

The IE-1AD Series is a chime tone audio intercom system with door release. The system supports 1 door station and 1 handset master station. Choose from other compatible door stations to create a system that fits your need.
Learn more about the IE Series in the Technical Knowledgebase! https://www.aiphone.com/kbtopic/ie-series
System Capacity
1
Door Station
1
Master Station
Jump to:
Features
Selective Door Release
- 4-tone chime from door station
- Call extension speaker or external signaling relay can be added
- Adjustable chime volume
- Door release
- AC or DC powered (12~16V AC or 12~24V DC)
Specs
Power Source
12~16V AC – use PT-1210NA
12~24V DC, 160mA – use PS-1225UL
Communication
Door calls in with 4-tone chime, pick up handset to reply
Door Release
N/O dry contact, 24V AC/DC, 500mA
Wire Type
Door Station to Master Station: 2-cond., overall shield – use Aiphone #822202
Distance
Door Station to Master Station: 500' (22AWG), 1,200' (18AWG)
Components
Literature
