System Highlights

GT-1C7W

Components

App-compatible Audio/Video Tenant Station

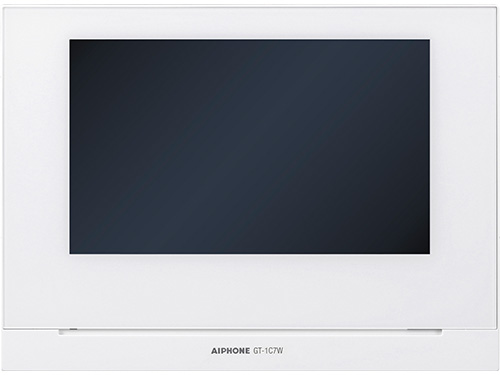

The GT-1C7W is an app-compatible audio/video tenant station for the GT Series Multi-Tenant system. The 7" touchscreen allows for various functions such as answering an incoming call, door release, and triggering an optional output. Additional controls include screen brightness, Pan, Tilt, Zoom (PTZ), and guard call.

System Highlights
Features
Mobile App
Access Control
  • 7″ touchscreen
  • Aiphone Type GT App capable (Up to 8 apps)
  • Hands-free audio communication
  • Door release
  • Concierge/security guard call
  • PTZ and brightness control
  • Call tone volume control
  • Communication volume control

Specs

Power Source:

24V DC (From PS-2420UL or GT-4ZP)

Current:

(MAX) ~ 300mA

Communication:

Hands-free or Push-to-talk

Screen:

7 inch TFT color LCD

Mounting:

Surface wall mount

Temperature:

32-104°F (0-40°C)

Dimensions:

6-1/8" H x 8-1/4" W x 1-1/16" D

Weight:

Approx. 1.37 lbs (620g)

microSDHC:

4-32GB(FAT32) Class 10

WLAN interface:

IEEE802.11b/g/n

Upload/Download:

Minimum 3 Mbps
