System Highlights

AXW-AZ

Components

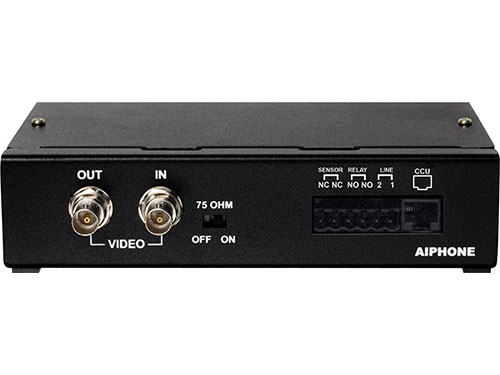

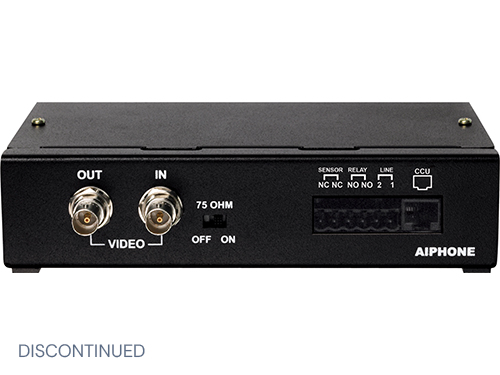

Video Adaptor for CCTV Camera and Audio Door Station

System Highlights
Features
  • Allows CCTV camera to be viewed on AX Series video master station
  • Standard motion detector used to auto-activate camera
  • Audio door station can be used for communication to camera location
  • Relay output to trigger external device when CCTV camera is activated
  • Video output for connection to standard CCTV monitor or recorder for full time video signal
  • Sensor input to trigger CCTV automatically
  • Video output allows constant viewing of CCTV camera

Specs

Video In & Out

Composite 1Vpp, NTSC

Video Connectors

BNC

Monitoring

30 sec., controlled by Master Station

Camera Activation

N/C sensor input or by Master Station

Wire Type

Cat-5e

Distance

980'
