System Highlights
System Capacity
120
Door/Sub Stations
8
Masters

AX Series

Series

Video Intercom with Integration

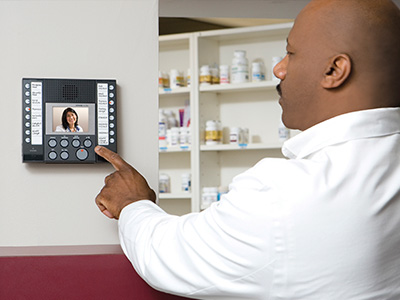

The AX Series is an analog exchange-based video intercom that controls your building's access and entry with efficient communication and video. Safely identify and confirm visitor intent through clear video and crisp audio prior to unlocking a door with a simple push of a button. The intuitive programming software makes customizing and updating the system easy. The AX Series is a perfect fit for high-capacity applications requiring a large-scale open-voice intercom solution.

Integrates with Mainstream Security Peripherals

Integrate the AX Series into existing security components such as CCTV networks, and analog PBX/telephone transfer systems. Composite video output allows the video to be recorded or seen on larger screens. Include the AWX-PA1 paging adaptor to broadcast important announcements through a paging system.

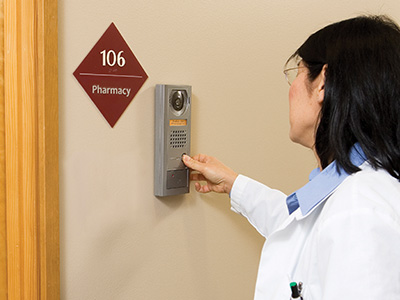

Integrate the AX system with the AC Series, our new access control system, for the next level in entry control. Control building and property entry access with door stations. Expand your security reach in remote areas by adding door stations to parking garages, stanchions, gates, and more. The optional AX-320C add-on central exchange unit supports up to 32 doors each and will allow up to 3 units connected to the main CEU (central exchange unit). The AX Series can support up to 8 master stations and 120 door/sub stations all wired on Cat-5e cable making it easy to mix and match and integrate with other security peripherals.

System Highlights
System Capacity
120
Door/Sub Stations
8
Masters
QuikSpec
QuikSpec has moved to the AiphoneCloud
Login or Create your account.
Features
Entry Security
  • Two talk channels
  • Composite video output from CEU and master station
  • Scan monitoring
  • PC programmable with a variety of settings
  • Standard or priority call levels from sub stations
  • Communication privacy between master stations
  • Low light illumination and weather resistant video door stations
  • Transfer calls to an outside POTS line (requires Viking Model K-1900-5 programmable dialer)
  • Stations home run back to the CEU on Cat-5e/6 wire

Specs

Power Source

24V DC - Use two PS-2420UL (110V AC) per system

Communication

Hands-free (VOX) or push-to-talk (simplex)

Consumption

Video: 0.62A max
Audio: 0.65A max

Door Release

Programmable dry contact, 24V AC/DC, 500mA (use RY-1824L for larger contact rating)

Wire Type

CAT-5e UTP-4 homerun from each station to CEU
Power Supply to CEU and Add-on CEU: 2-cond., overall shield – use Aiphone 821802 wire

Wiring Distance

980' – Master, Door, and Sub Station to CEU/Add-on CEU 16’ – CEU to Add-on CEU
16’ (22 AWG) & 33’ (18AWG) – Power Supply to CEU and Add-on CEU

CO Line Port

RJ11 for Viking K-1900-5 programmable auto-dialer

Mounting

CEU - 19” EIA rack (2U) or wall mount.
Master stations – surface/wall or desk (use MCW-S/B for adjustable desk angle)
Video door stations – surface/wall or mullion
Audio door stations – surface/wall or mullion


Components
Communication Type
Station Type
Component Feature
